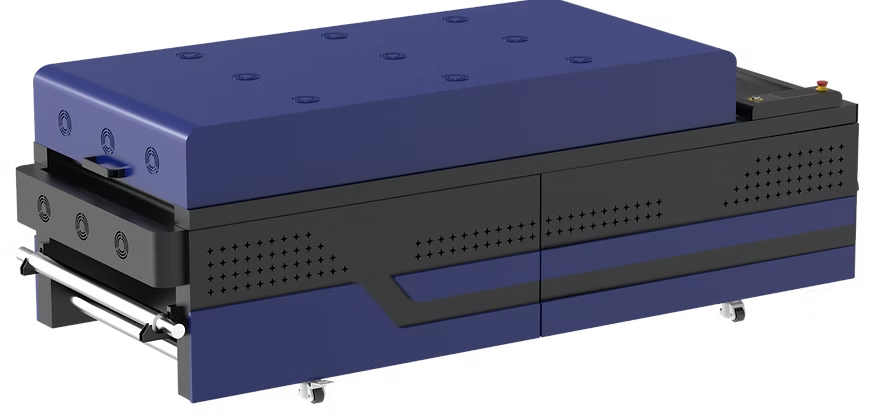

Fedar SH606 Shaker/Dryer
Fedar SH606 Shaker/Dryer — Recommended for the FD70-6H | Matched for 24-Inch Production
The SH606 is Fedar's High Capacity shaker and curing system, engineered for 6 and 6 head production lines running two or more rolls per day. It handles up to ~377 Sq ft/hr using back-and-front constant-temperature heating with motor-vibration powder distribution, and a drum suction mesh belt that keeps film moving smoothly even at production speeds.
Similar to the SH604, the SH606 includes a built-in fume extractor as standard, ships fully assembled, and fits through a standard 36" doorway. Auto-detection during film cutting prevents deformation at the cut point and automatic powder re-circulation is available as an upgrade to keep the line running without manual refilling.
The SH606 is simply a bigger, faster shaker built to match the industrial output speeds of the 5 and 6-head FD70 Systems.
Key Specs
Technical Specifications
Detailed parameters for the high-performance SH606 series system.
Operational Specs
Essential physical capabilities including media width and powder management.
Model: SH606
Media Width: 24 inch
Powder Application: Auto-Sensing
Powder Recirculation: Supported
Performance Metrics
Advanced curing capabilities and high-speed production data.
Curing: Constant Temp
Speed: 377 sq ft/hr
Film Transport: Drum Suction
Rewinder: Constant Tension
Physical Hardware
Complete dimensions, power ratings, and weight specifications.
Power: 220v 15A
Dimensions: 35x87x40 in
Weight: 838 lbs
Crate Size: 39x91x45 in
Production Line at a Glance
FD1808 Printer: 390 lbs | 67" W x 35" D x 63" H | 110V/220V switchable, 20A dedicated circuit
SH604 Shaker/Dryer: 772 lbs | 35" W x 81" L x 40" H | 220V, 20A dedicated circuit
SH606 Shaker/Dryer: 838 lbs | 35" W x 87" L x 40" H | 220V, 20A dedicated circuit
Combined (with SH606): ~1,198 lbs | ~8 ft wide x ~18.5 ft deep (with clearances)
